BIM

Bimace provides BIM services at ‘Best Price with quality’ for Architects, Engineers & Construction Professionals. Our team is experienced for producing accurate BIM Models to LOD-500 which includes Architecture, Structure and MEP.We are also very well experienced up to 5D of  BIM including Clash Detection and 4D Simulation.

OUR EXPERTISE

BIM-3D

Developing Conceptual design in 3D

Working in 3 Axis(X-Y-Z)

Parametric Design Model & Space programming

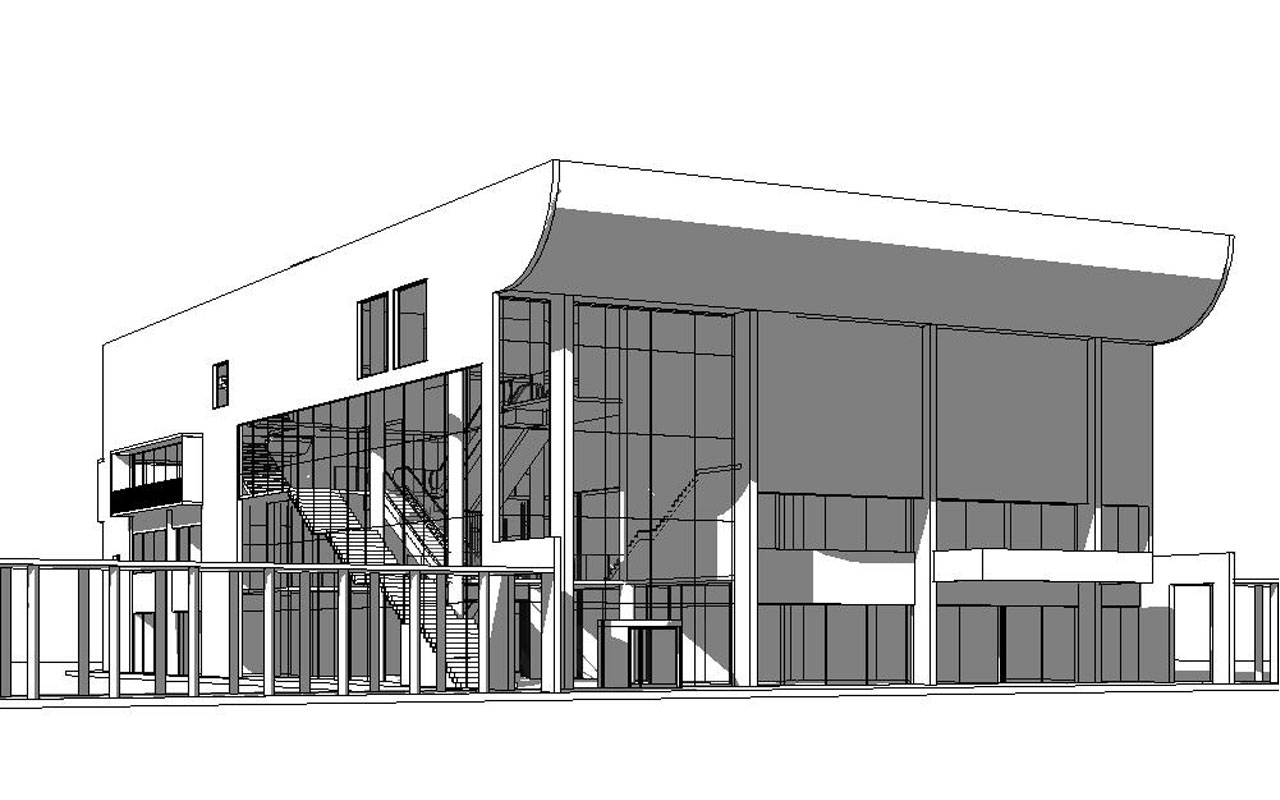

Rendering 3d Views

Making Walkthroughs

BIM-4D

Time related information is associated with different 3D components

Sequencing and Interdependency of elements

Project Phasing

4D Simulation

Clash Detection

BIM-5D

Integration of design with Estimate, Schedule and Cost

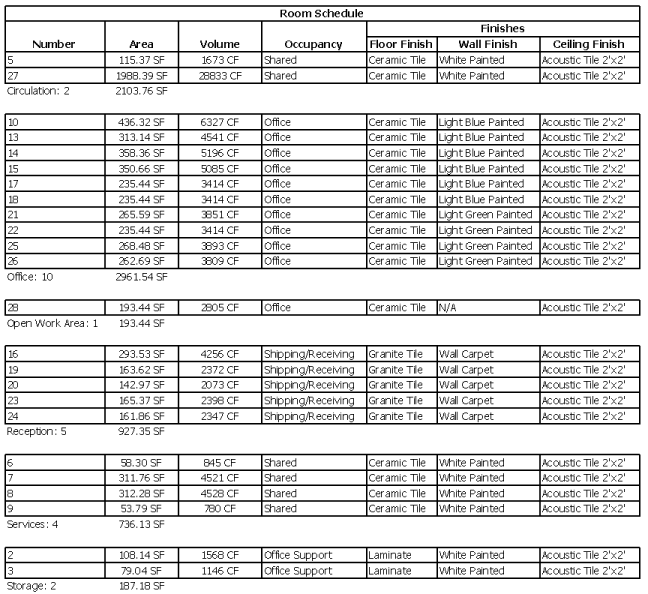

Generating BOQ.

Computing labur cost and productivity rates

Linking cost data and creating Estimate.

Quantity extraction for cost estimation.

Shows the impact of change on schedule and Budget

OUR SERVICES- THE LOD LANGUAGE

LOD-100

A conceptual model where information is conveyed by massing forms,written narratives and 2d symbols.Volume, Area, Height, Orientation is defined here.
A conceptual model where information is conveyed by massing forms,written narratives and 2d symbols.Volume, Area, Height, Orientation is defined here.

LOD-200

The Model Element is graphically represented within the Model as a generic system, object,
or assembly with approximate quantities, size, shape, location, and orientation. Non-graphic
information may also be attached to the Model Element.
The Model Element is graphically represented within the Model as a generic system, object, or assembly with approximate quantities, size, shape, location, and orientation. Non-graphic information may also be attached to the Model Element.

LOD-300

The Model Element is graphically represented within the Model as a specific system, object
or assembly in terms of quantity, size, shape, location, and orientation. Non-graphic
information may also be attached to the Model Element.
The Model Element is graphically represented within the Model as a specific system, object or assembly in terms of quantity, size, shape, location, and orientation. Non-graphic information may also be attached to the Model Element.

LOD-350

It includes model detail and element that represent how building elements interface with various systems and other building elements with graphics and written definitions
It includes model detail and element that represent how building elements interface with various systems and other building elements with graphics and written definitions

LOD-400

Model elements are modeled as specific assemblies, with complete fabrication, assembly, and detailing information in addition to precise quantity, size, shape, location and orientation.Non- geometric information to the model elements can also be attached
Model elements are modeled as specific assemblies, with complete fabrication, assembly, and detailing information in addition to precise quantity, size, shape, location and orientation.Non- geometric information to the model elements can also be attached

LOD-500

Elements are modeled as constructed assemblies for Maintenance and operations. In addition to actual and accurate in size, shape, location, quantity, and orientation, non-geometric information is attached to modeled elements
Elements are modeled as constructed assemblies for Maintenance and operations. In addition to actual and accurate in size, shape, location, quantity, and orientation, non-geometric information is attached to modeled elements
OUR TOOLS
  • BIM
  • BIM
  • BIM
  • BIM
  • BIM
  • BIM
  • BIM


From DESIGNING to DRAUGHTing to BIM

Lets Start
